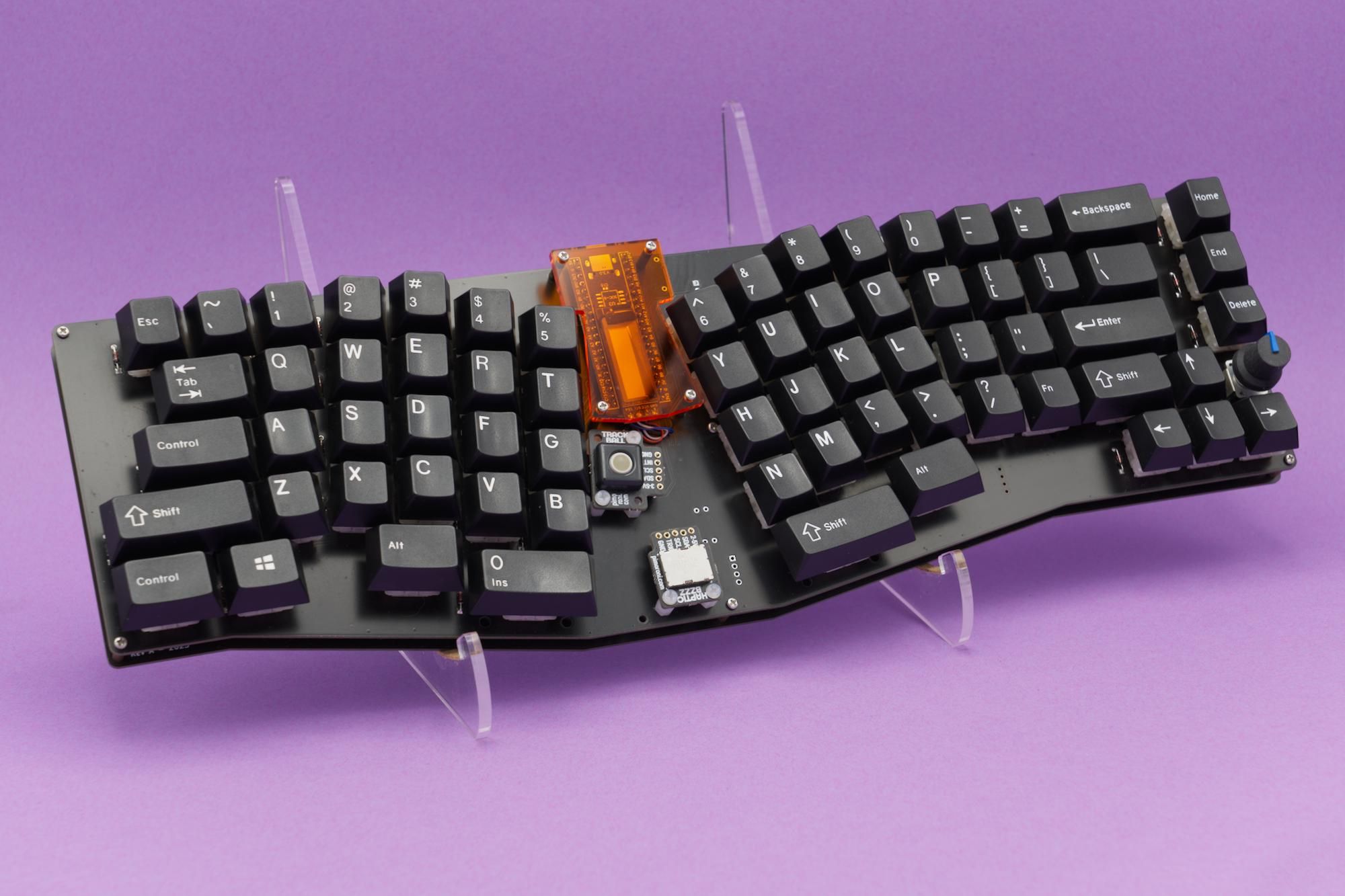

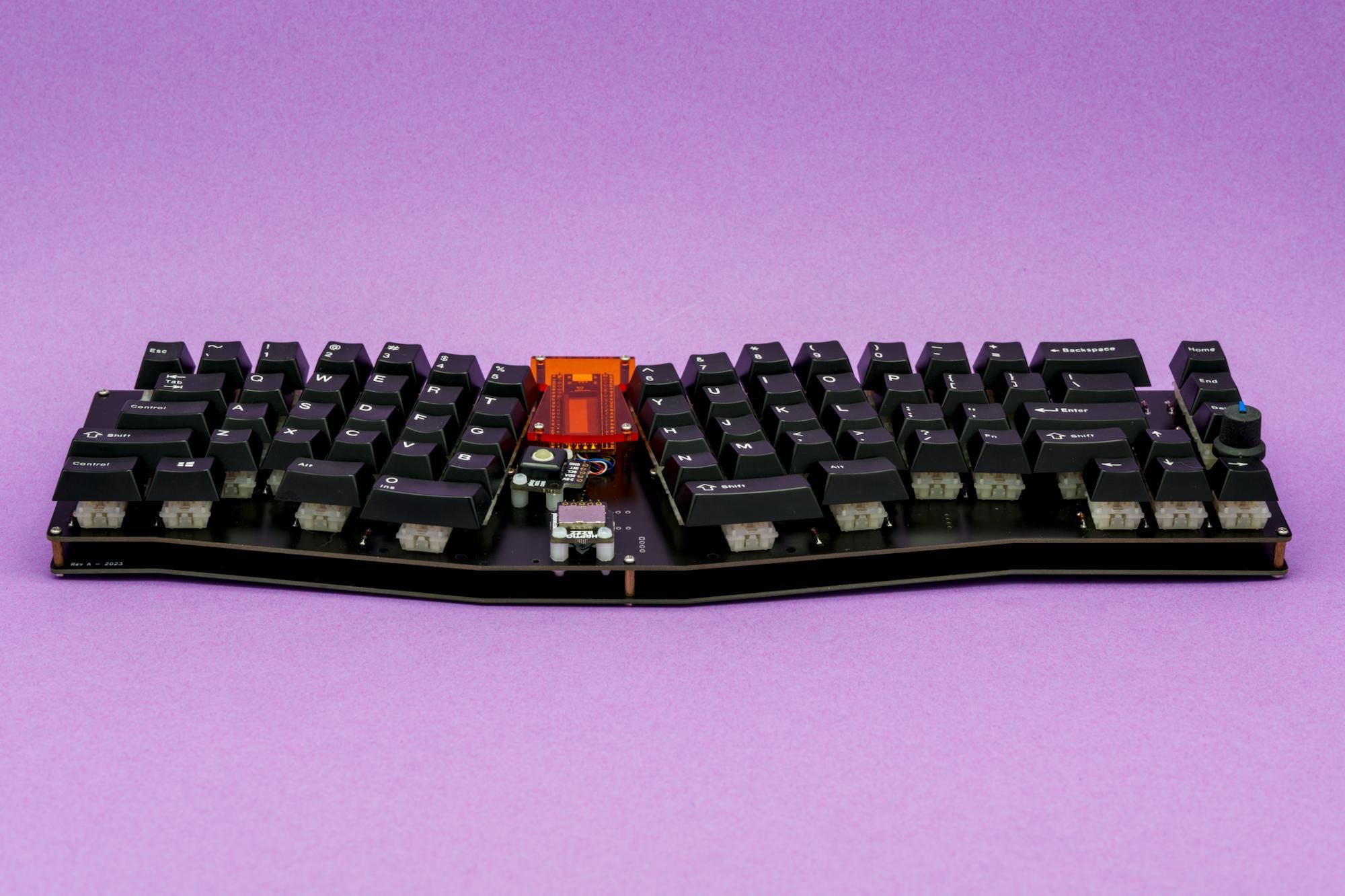

Jasmine is an ortholinear ergonomic mechanical keyboard with a PCB construction.

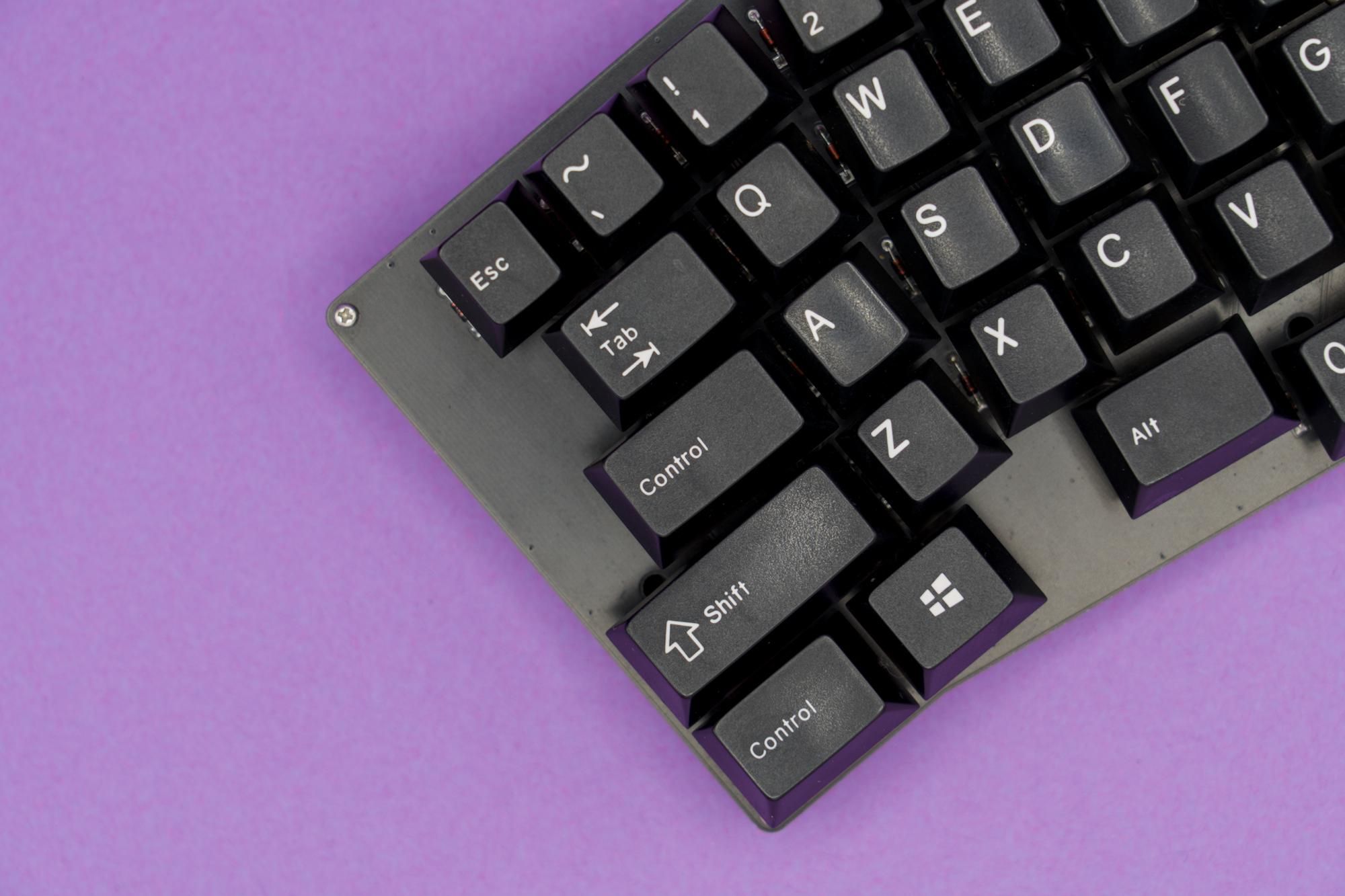

The rows are staggered instead of the columns on a regular keyboard. The keyboard can use keycaps from a regular layout with 1.5 and 1.25 modifier keys.
It supports an SSD1306 128x32 OLED display, a Pimoroni trackball and a DRV2605L Linear actuator module.

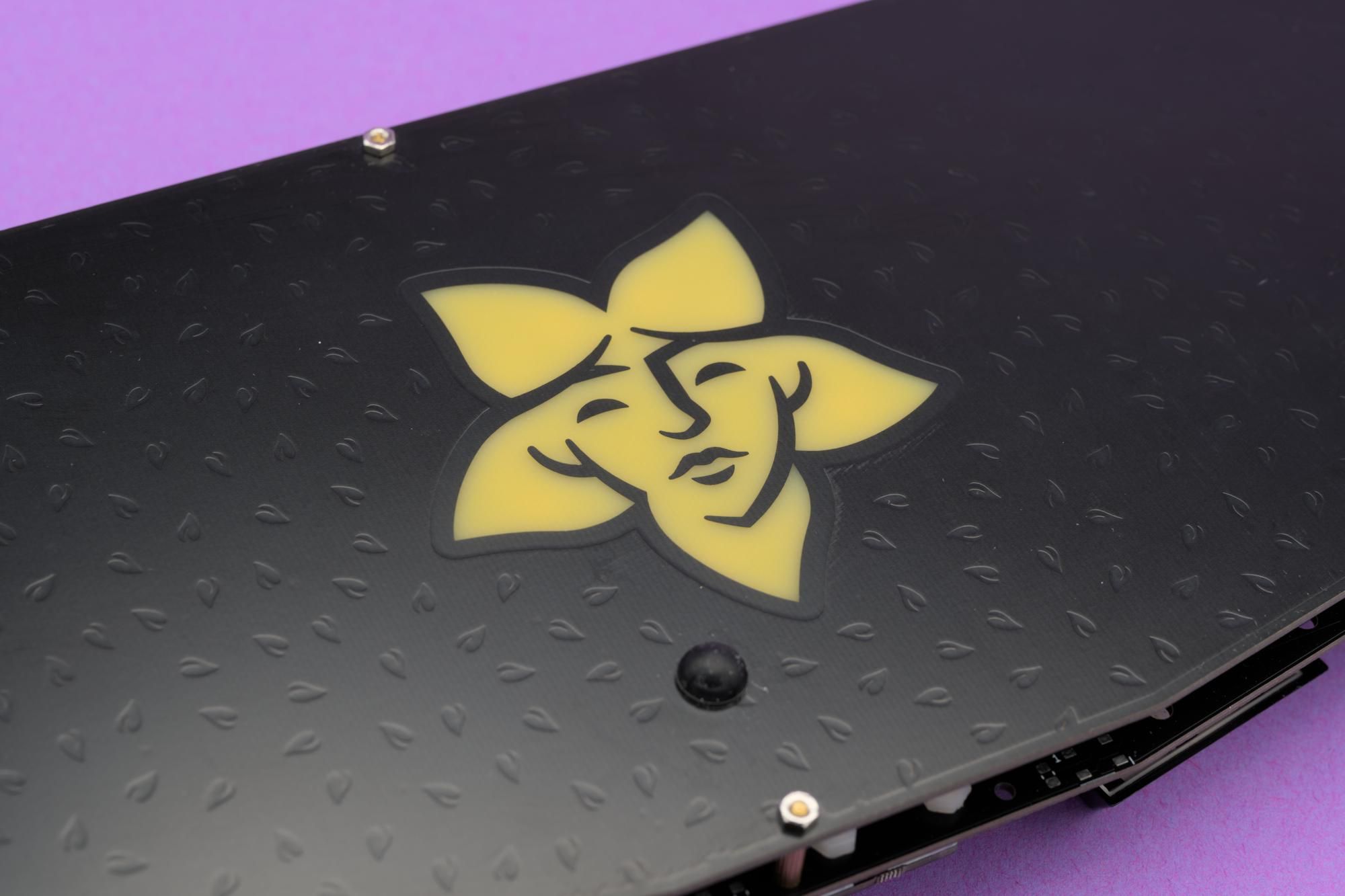

The bottom is made from FR4 material. It uses the shape of copper layer for the imprinted leaves and a semi-transparent window with the logo allowing a ring of RGB LEDs to shine through.
The keyboard runs QMK firmware and is configurable with VIA.
The PCBs are designed in KiCad and the keyboard layout is designed using the Keyboard Layout Editor.
